Product Overview

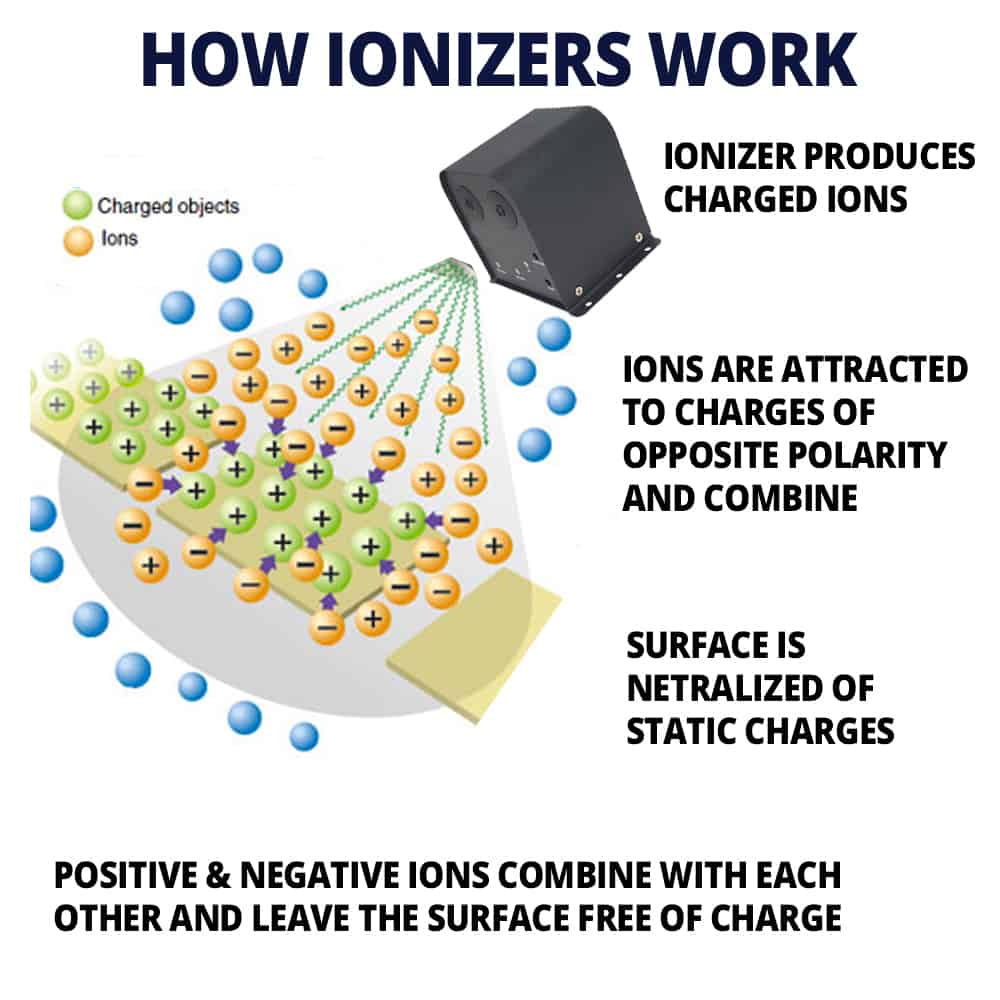

ESD Ionizers are essential components of any complete electrostatic protected area (EPA). While grounding eliminates static charges from conductive and dissipative materials, insulators — such as product packaging, PCB substrates, plastic enclosures, and even operator clothing — cannot be grounded. Ionizers neutralise these charges by flooding the work area with balanced positive and negative air ions that actively seek out and cancel static charges on any surface.
Propack Electronics supplies a comprehensive range of ionizers: compact benchtop fans for single-workstation protection, overhead bar ionizers for production line coverage, and room-level ionization systems for large EPAs. All models feature auto ion-balance monitoring, low ozone emission, and EMI/RFI shielded electronics for use near sensitive electronic assemblies.
Product Range & Features
Benchtop Fan Ionizers
Compact desktop units with adjustable fan speed, 360° rotation, and auto-balance. Covers up to 1.5 m² workbench area with ions.
Overhead Bar Ionizers
Ceiling-mounted bar format for production line coverage. Available in 600 mm, 900 mm, 1200 mm lengths. Long throw range up to 1.5 m below.
Auto Ion Balance
Microprocessor-controlled auto-balance circuitry maintains optimal ±5V offset voltage, preventing charge polarity bias in the work zone.
Pulsed DC Technology
Advanced pulsed DC models deliver faster decay times (<1 second at 300 mm) compared to standard AC ionizers, ideal for high-speed assembly.
Performance Monitoring
LED indicators and audible alarm for emitter contamination and balance drift. Helps maintain consistent ion performance between scheduled maintenance.
Low Ozone Emission
Special emitter design and low-voltage operation minimises ozone generation, making these ionizers safe for cleanroom and enclosed workspace use.
Technical Specifications — Benchtop Fan Ionizer
| Ionization Technology | Pulsed DC / AC (model dependent) |
|---|---|
| Ion Balance (Offset Voltage) | ±5 V (auto-balance maintained) |
| Decay Time at 300 mm | < 1 second (pulsed DC); < 3 seconds (AC) per ANSI/ESD STM3.1 |
| Coverage Area | Up to 1.5 m × 1.5 m (fan ionizer); Up to 1.2 m wide (bar ionizer) |
| Air Flow Speed | 0.3–1.2 m/s (adjustable) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | 15 W (fan) / 30 W (bar) |
| Emitter Cleaning Interval | Quarterly (standard environment); Monthly (dusty/chemical) |
| Operating Temperature | 10°C – 40°C, <70% RH non-condensing |
| Compliance | ANSI/ESD STM3.1, CE marked, RoHS |
